CCMT120408-TM P2225
Turning insert
500-00745
Technical Diagram
Product Details
| Item Number | Designation |
RE (mm)
Corner radius
|
L1 (mm)
Insert edge length
|
IC (mm)
Insert size
|
S (mm)
Insert thickness
|
D1 (mm)
Hole diameter
|
Min. ap (mm)
Minimum depth of cut
|
Max. ap (mm)
maximum depth of cut
|
Min. ft (mm/rev)
Minimum feedrate
|
Max. ft (mm/rev)
Maximum feed rate
|
Q
Grade
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-00745 | CCMT120408-TM P2225 | 0.8 | 12.9 | 12.7 | 4.76 | 5.56 | 0.40 | 1.50 | 0.1 | 0.30 | P2225 |
Designation
CCMT120408-TM P2225
RE (mm)
Corner radius
0.8
L1 (mm)
Insert edge length
12.9
IC (mm)
Insert size
12.7
S (mm)
Insert thickness
4.76
D1 (mm)
Hole diameter
5.56
Min. ap (mm)
Minimum depth of cut
0.40
Max. ap (mm)
maximum depth of cut
1.50
Min. ft (mm/rev)
Minimum feedrate
0.1
Max. ft (mm/rev)
Maximum feed rate
0.30

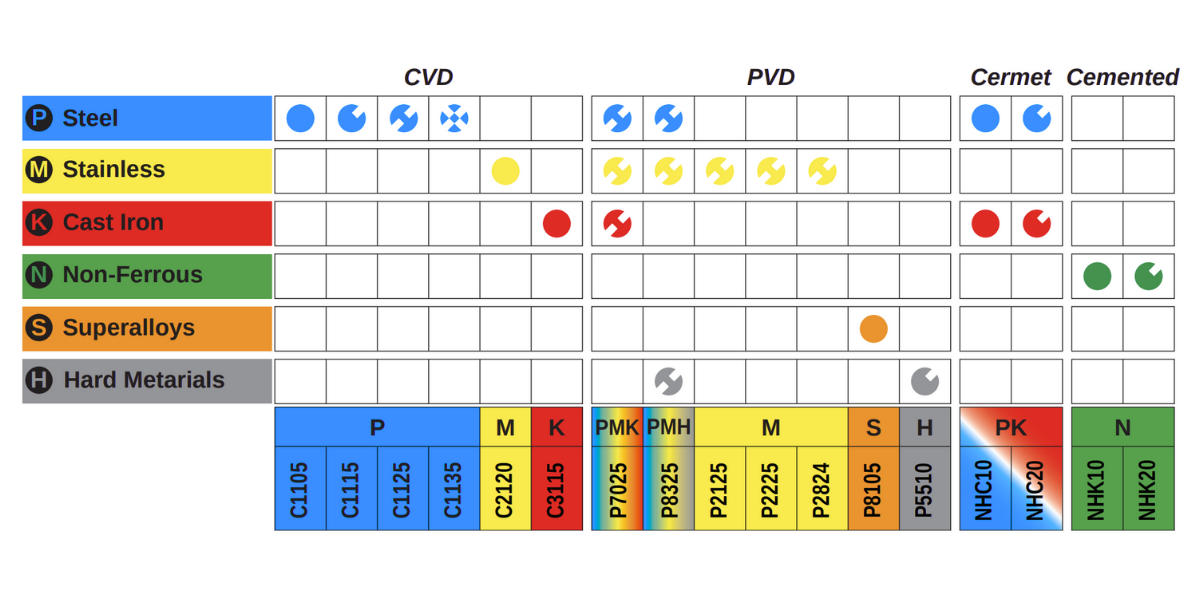

Q
Grade
P2225
| GTIN(EAN) |
|---|
3D Model
2D Drawing
