CNMG120404-BM P2125
Turning insert
500-00612
Technical Diagram
Product Details
| Item Number | Designation |
RE (mm)
Corner radius
|
L1 (mm)
Insert edge length
|
IC (mm)
Insert size
|
S (mm)
Insert thickness
|
D1 (mm)
Hole diameter
|
Min. ap (mm)
Minimum depth of cut
|
Max. ap (mm)
maximum depth of cut
|
Min. ft (mm/rev)
Minimum feedrate
|
Max. ft (mm/rev)
Maximum feed rate
|

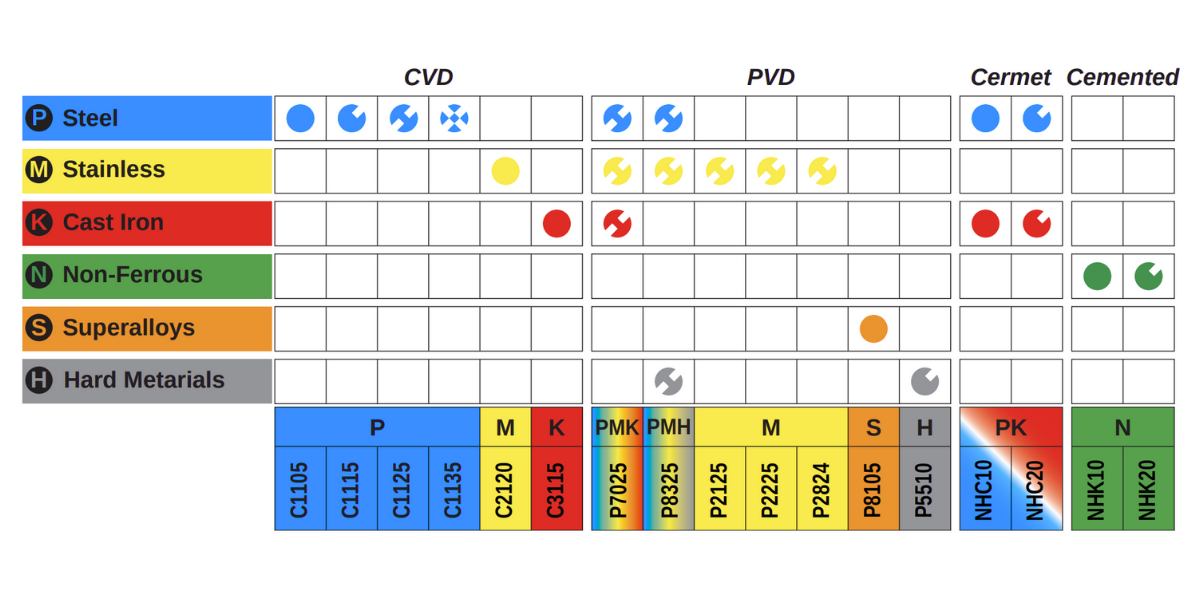

Q
Grade
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-00612 | CNMG120404-BM P2125 | 0.4 | 12.9 | 12.7 | 5.16 | 5.16 | 0.4 | 5.0 | 0.10 | 0.55 | P2125 |
Designation
CNMG120404-BM P2125
RE (mm)
Corner radius
0.4
L1 (mm)
Insert edge length
12.9
IC (mm)
Insert size
12.7
S (mm)
Insert thickness
5.16
D1 (mm)
Hole diameter
5.16
Min. ap (mm)
Minimum depth of cut
0.4
Max. ap (mm)
maximum depth of cut
5.0
Min. ft (mm/rev)
Minimum feedrate
0.10
Max. ft (mm/rev)
Maximum feed rate
0.55
Q
Grade
P2125
| GTIN(EAN) |
|---|
3D Model
2D Drawing
