CNMG-BM
Double-Sided 80° Rhombic Inserts for medium. Suitable for machining of stainless steel.

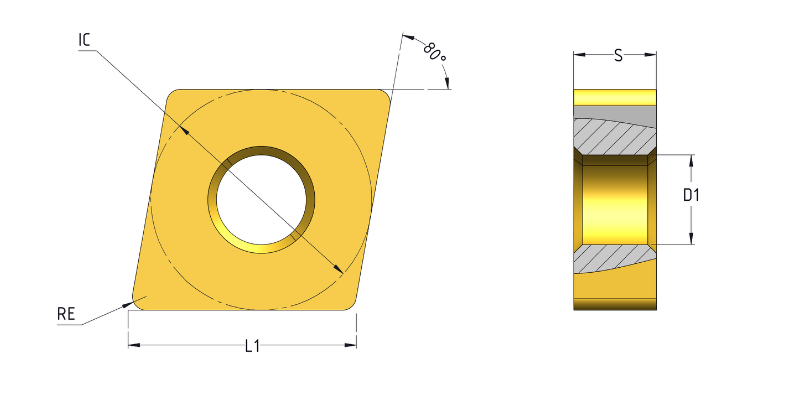

Technical Diagram
Product Details
|
Item Number
|
Designation
|
RE (mm)
Corner radius
|
L1 (mm)
Insert edge length
|
IC (mm)
Insert size
|
S (mm)
Insert thickness
|
D1 (mm)
Hole diameter
|
Min. ap (mm)
Minimum depth of cut
|
Max. ap (mm)
maximum depth of cut
|
Min. ft (mm/rev)
Minimum feedrate
|
Max. ft (mm/rev)
Maximum feed rate
|
Q
Grade
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-00612 | CNMG120404-BM P2125 | 0.4 | 12.9 | 12.7 | 5.16 | 5.16 | 0.4 | 5.0 | 0.10 | 0.55 | P2125 |
| 500-00613 | CNMG120404-BM P2225 | 0.4 | 12.9 | 12.7 | 5.16 | 5.16 | 0.4 | 5.0 | 0.10 | 0.55 | P2225 |
| 500-00614 | CNMG120408-BM P2125 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 0.5 | 5.5 | 0.10 | 0.55 | P2125 |
| 500-00615 | CNMG120408-BM P2225 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 0.5 | 5.5 | 0.10 | 0.55 | P2225 |
| 500-00616 | CNMG120412-BM P2125 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 0.5 | 5.5 | 0.10 | 0.55 | P2125 |
| 500-00617 | CNMG120412-BM P2225 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 0.5 | 5.5 | 0.10 | 0.55 | P2225 |
Showing 1 to 6 of 6 results
