VBMT-TF

35° Rhombic Positive Flank Inserts for Finishing of steel

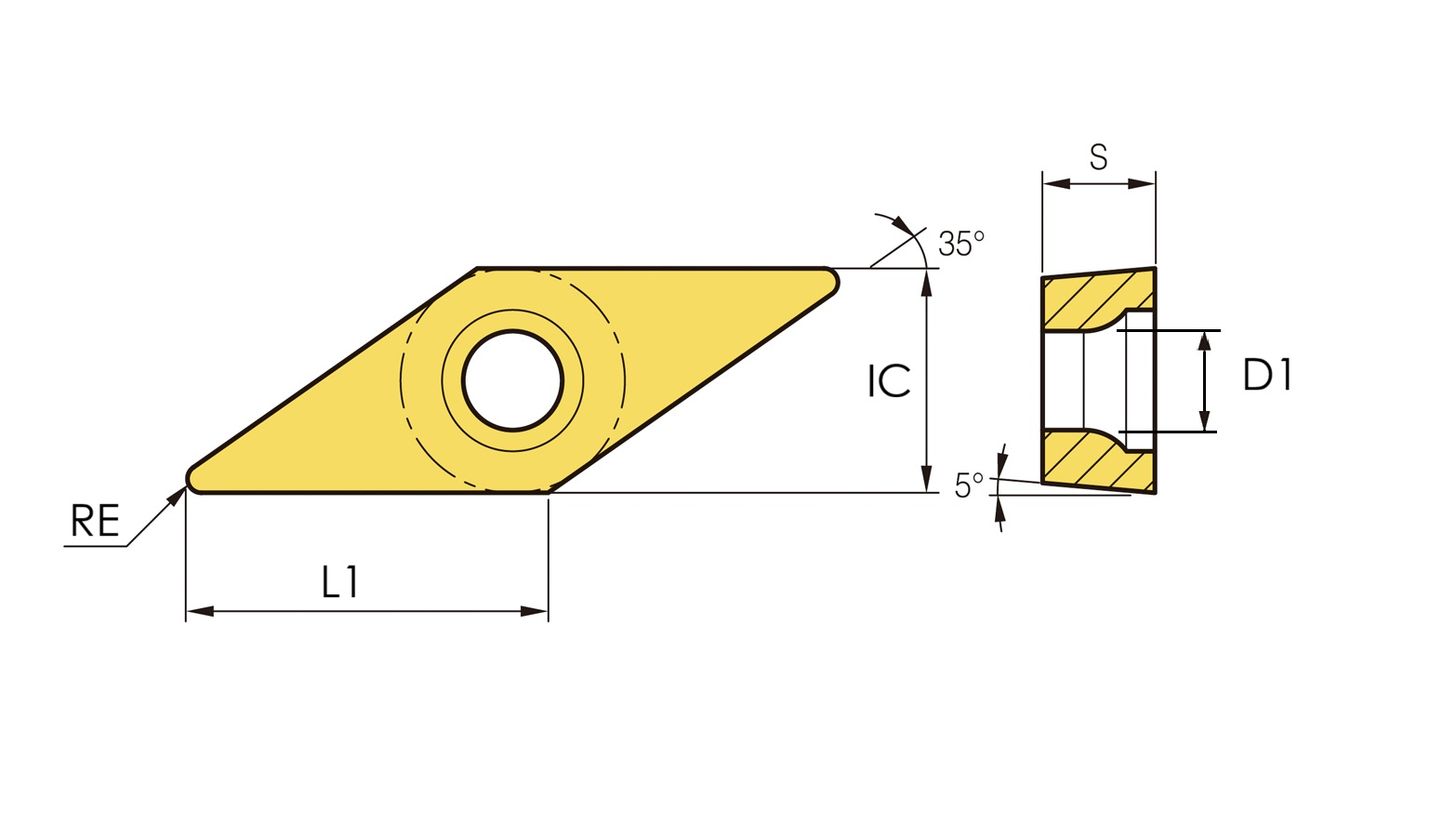

Item Number	Designation	RE (mm)	L1 (mm)	IC (mm)	S (mm)	D1 (mm)	Min. ap (mm)	Max. ap (mm)	Min. ft (mm/rev)	Max. ft (mm/rev)	Q
500-00888	VBMT110304-TF C1115	0.4	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	C1115
500-00889	VBMT110304-TF C1125	0.4	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	C1125
500-00890	VBMT110304-TF P2225	0.4	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	P2225
500-00891	VBMT110308-TF C1115	0.8	11	6.35	3.18	2.8	0.40	1.50	0.05	0.25	C1115
500-00892	VBMT110308-TF C1125	0.8	11	6.35	3.18	2.8	0.40	1.50	0.05	0.25	C1125
500-00893	VBMT110308-TF P2225	0.8	11	6.35	3.18	2.8	0.40	1.50	0.05	0.25	P2225
500-00787	VBMT160404-TF C1115	0.4	16.5	9.52	4.76	4.4	0.20	1.50	0.05	0.25	C1115
500-00788	VBMT160404-TF C1225	0.4	16.5	9.52	4.76	4.4	0.20	1.50	0.05	0.25	C1125
500-00789	VBMT160404-TF P2125	0.4	16.5	9.52	4.76	4.4	0.20	1.50	0.05	0.25	P2125
500-00858	VBMT160404-TF P2225	0.4	16.5	9.52	4.76	4.4	0.20	1.50	0.05	0.25	P2225
500-00795	VBMT160408-TF C1115	0.8	16.5	9.52	4.76	4.4	0.40	1.50	0.05	0.25	C1115
500-00728	VBMT160408-TF C1225	0.8	16.5	9.52	4.76	4.4	0.40	1.50	0.05	0.25	C1225
500-00797	VBMT160408-TF P2125	0.8	16.5	9.52	4.76	4.4	0.40	1.50	0.05	0.25	P2125
500-00859	VBMT160408-TF P2225	0.8	16.5	9.52	4.76	4.4	0.40	1.50	0.05	0.25	P2225
