CNMG-BR
Double-Sided 80° Rhombic Inserts for finishing. Suitable for machining of stainless steel.

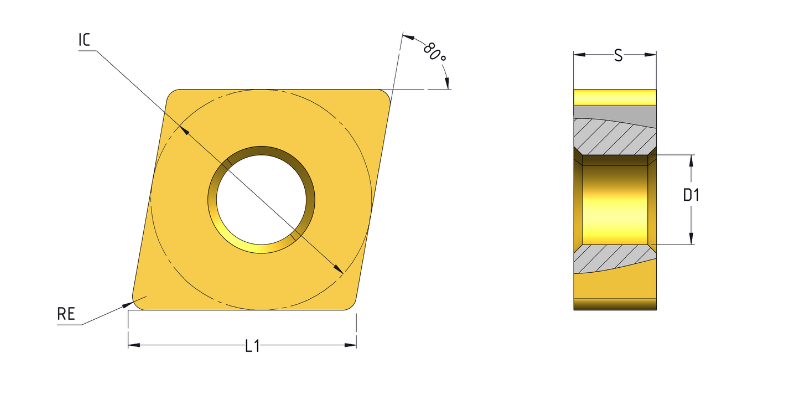

Technical Diagram
Product Details
|
Item Number
|
Designation
|
RE (mm)
Corner radius
|
L1 (mm)
Insert edge length
|
IC (mm)
Insert size
|
S (mm)
Insert thickness
|
D1 (mm)
Hole diameter
|
Min. ap (mm)
Minimum depth of cut
|
Max. ap (mm)
maximum depth of cut
|
Min. ft (mm/rev)
Minimum feedrate
|
Max. ft (mm/rev)
Maximum feed rate
|
Q
Grade
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-00703 | CNMG120408-BR P2125 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 1.5 | 6.0 | 0.25 | 0.55 | P2125 |
| 500-00704 | CNMG120408-BR P2225 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 1.5 | 6.0 | 0.25 | 0.55 | P2225 |
| 500-00705 | CNMG120412-BR P2125 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 1.5 | 6.0 | 0.25 | 0.55 | P2125 |
| 500-00706 | CNMG120412-BR P2225 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 1.5 | 6.0 | 0.25 | 0.55 | P2225 |
| 500-00715 | CNMG190612-BR P2125 | 1.2 | 19.3 | 19.05 | 6.35 | 6.35 | 2.0 | 6.5 | 0.25 | 0.55 | P2125 |
| 500-00716 | CNMG190612-BR P2225 | 1.2 | 19.3 | 19.05 | 6.35 | 6.35 | 2.0 | 6.5 | 0.25 | 0.55 | P2225 |
| 500-00717 | CNMG190616-BR P2125 | 1.6 | 19.3 | 19.05 | 6.35 | 6.35 | 2.0 | 6.5 | 0.25 | 0.55 | P2125 |
| 500-00718 | CNMG190616-BR P2225 | 1.6 | 19.3 | 19.05 | 6.35 | 6.35 | 2.0 | 6.5 | 0.25 | 0.55 | P2225 |
Designation
CNMG120408-BR P2125
Designation
CNMG120408-BR P2225
Designation
CNMG120412-BR P2125
Designation
CNMG120412-BR P2225
Designation
CNMG190612-BR P2125
Designation
CNMG190612-BR P2225
Designation
CNMG190616-BR P2125
Designation
CNMG190616-BR P2225
Showing 1 to 8 of 8 results
