CNMG-BF
Double-Sided 80° Rhombic Inserts for finishing. Suitable for machining of stainless steel.

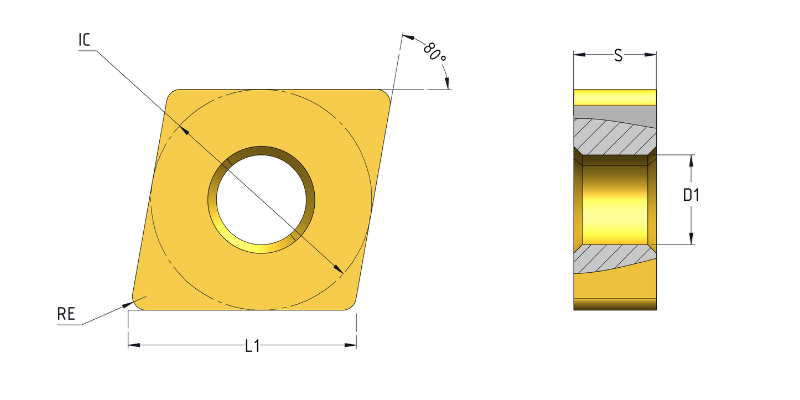

Technical Diagram
Product Details
|
Item Number
|
Designation
|
RE (mm)
Corner radius
|
L1 (mm)
Insert edge length
|
IC (mm)
Insert size
|
S (mm)
Insert thickness
|
D1 (mm)
Hole diameter
|
Min. ap (mm)
Minimum depth of cut
|
Max. ap (mm)
maximum depth of cut
|
Min. ft (mm/rev)
Minimum feedrate
|
Max. ft (mm/rev)
Maximum feed rate
|
Q
Grade
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-00543 | CNMG090304-BF P8325 | 0.4 | 9.7 | 9.53 | 3.18 | 3.81 | 0.5 | 2.0 | 0.1 | 0.25 | P8325 |
| 500-00544 | CNMG090308-BF P8325 | 0.8 | 9.7 | 9.53 | 3.18 | 3.81 | 0.5 | 2.0 | 0.1 | 0.25 | P8325 |
| 500-00546 | CNMG120404-BF P2225 | 0.4 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P2225 |
| 500-00547 | CNMG120404-BF P2824 | 0.4 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P2824 |
| 500-00545 | CNMG120404-BF P8325 | 0.4 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P8325 |
| 500-00549 | CNMG120408-BF P2225 | 0.8 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P2225 |
| 500-00550 | CNMG120408-BF P2824 | 0.8 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P2824 |
| 500-00548 | CNMG120408-BF P8325 | 0.8 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P8325 |
| 500-00552 | CNMG120412-BF P2225 | 1.2 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P2225 |
| 500-00553 | CNMG120412-BF P2824 | 1.2 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P2824 |
| 500-00551 | CNMG120412-BF P8325 | 1.2 | 12.9 | 12.7 | 4.76 | 5.16 | 0.5 | 2.0 | 0.08 | 0.20 | P8325 |
Designation
CNMG090304-BF P8325
Designation
CNMG090308-BF P8325
Designation
CNMG120404-BF P2225
Designation
CNMG120404-BF P2824
Designation
CNMG120404-BF P8325
Designation
CNMG120408-BF P2225
Designation
CNMG120408-BF P2824
Designation
CNMG120408-BF P8325
Designation
CNMG120412-BF P2225
Designation
CNMG120412-BF P2824
Designation
CNMG120412-BF P8325
Showing 1 to 11 of 11 results
