PCLNR/L
Lever lock type toolholder with 95° approach angle, for negative 80° rhombic inserts

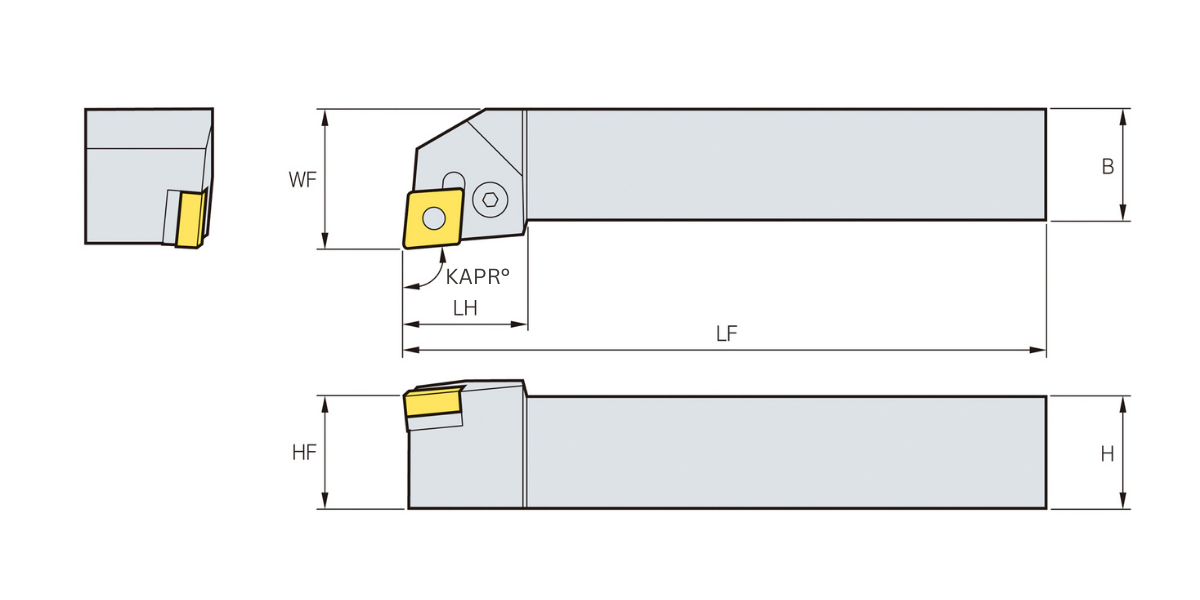

Technical Diagram
Product Details
|
Item Number
|
Designation
|
HAND
Hand Direction
|
KAPR
Tool cutting edge angle
|
H
Shank height
|
B
Shank width
|
LF
Tool length
|
LH
Head length
|
HF
Functional height
|
WF
Functional width
|
|---|---|---|---|---|---|---|---|---|---|
| 500-00895 | PCLNL2020K12 | L | 95° | 20 mm | 20 mm | 125 | 28 | 20 mm | 25 mm |
| 500-00897 | PCLNL2525M12 | L | 95° | 25 mm | 25 mm | 150 | 28 | 25 mm | 32 mm |
| 500-00899 | PCLNL3225P12 | L | 95° | 32 mm | 25 mm | 170 | 28 | 32 mm | 32 mm |
| 500-00894 | PCLNR2020K12 | R | 95° | 20 mm | 20 mm | 125 | 28 | 20 mm | 25 mm |
| 500-00896 | PCLNR2525M12 | R | 95° | 25 mm | 25 mm | 150 | 28 | 25 mm | 32 mm |
| 500-00898 | PCLNR3225P12 | R | 95° | 32 mm | 25 mm | 170 | 28 | 32 mm | 32 mm |
Showing 1 to 6 of 6 results
