NNMU1305 _ Arbor type
50°, Arbor Type milling cutters

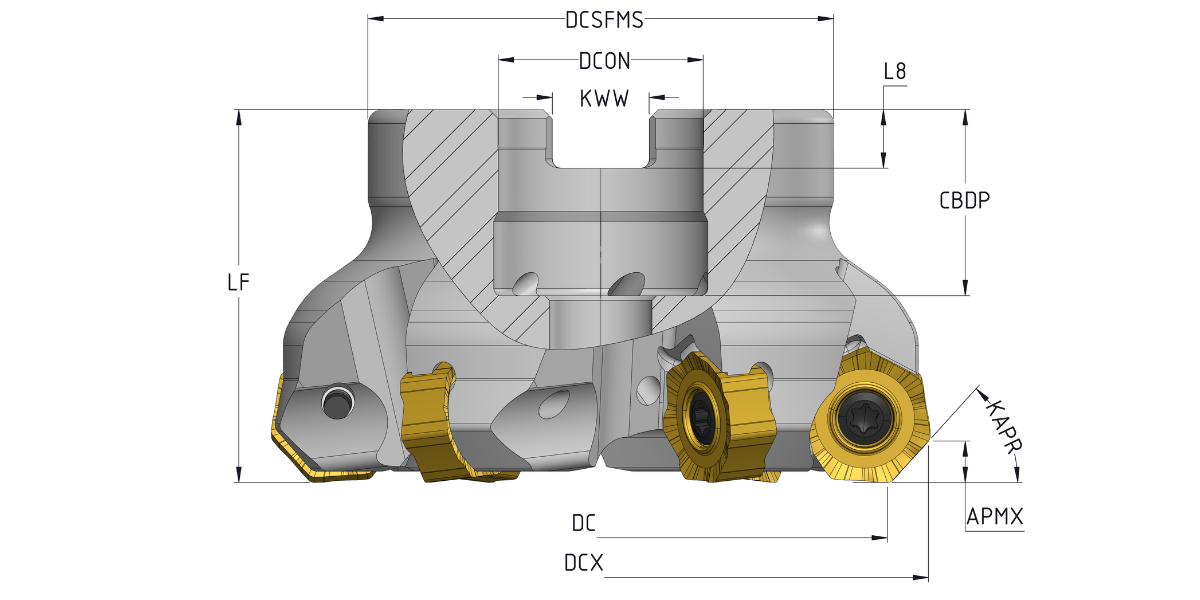

Technical Diagram
Product Details
|
Item Number
|
Designation
|
CCIT
Cutting item count
|
DC
Tool diameter
|
DCX
Cutting diameter maximum
|
LF
Tool length
|
DCSFMS
Contact surface diameter machine side
|
DCON
Connection diameter
|
CBDP
Connection bore depth
|
KWW
Keyway width
|
L8
Keyway depth
|
APMX
Maksimum kesme derinliği
|
KAPR
Tool cutting edge angle
|
CH
Internal coolant hole
|
Insert
Insert
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100-00536 | cc1 | - | - | - | - | - | - | - | - | - | - | 50° | - | NNMU1305.. |
Designation
cc1
Showing 1 to 1 of 1 results
