VBMT-TM

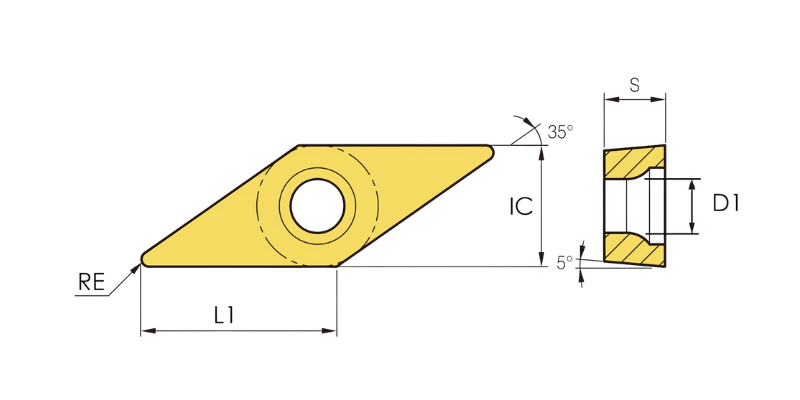

35° Rhombic Positive Flank Inserts for Semi-Finishing of steel and stainless steel.


Item Number	Designation	RE (mm)	L1 (mm)	IC (mm)	S (mm)	D1 (mm)	Min. ap (mm)	Max. ap (mm)	Min. ft (mm/rev)	Max. ft (mm/rev)	Q
500-00782	VBMT110304-TM C1115	0.4	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	C1115
500-00783	VBMT110304-TM C1125	0.4	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	C1125
500-00847	VBMT110304-TM P2225	0.4	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	P2225
500-00848	VBMT110304-TM P2824	0.4	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	P2824
500-00784	VBMT110308-TM C1115	0.8	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	C1115
500-00785	VBMT110308-TM C1125	0.8	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	C1125
500-00786	VBMT110308-TM P2225	0.8	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	P2225
500-00849	VBMT110308-TM P2824	0.8	11	6.35	3.18	2.8	0.20	1.50	0.05	0.25	P2824
500-00790	VBMT160404-TM C1115	0.4	16.5	9.52	4.76	4.4	0.20	2.50	0.05	0.25	C1115
500-00791	VBMT160404-TM C1125	0.4	16.5	9.52	4.76	4.4	0.20	2.50	0.05	0.25	C1125
500-00727	VBMT160404-TM C3115	0.4	16.5	9.52	4.76	4.4	0.20	2.50	0.05	0.25	C3115
500-00793	VBMT160404-TM P2125	0.4	16.5	9.52	4.76	4.4	0.20	2.50	0.05	0.25	P2125
500-00794	VBMT160404-TM P2225	0.4	16.5	9.52	4.76	4.4	0.20	2.50	0.05	0.25	P2225
500-00850	VBMT160404-TM P2824	0.4	16.5	9.52	4.76	4.4	0.20	2.50	0.05	0.25	P2824
500-00798	VBMT160408-TM C1115	0.8	16.5	9.52	4.76	4.4	0.4	2.50	0.05	0.25	C1115
500-00799	VBMT160408-TM C1125	0.8	16.5	9.52	4.76	4.4	0.4	2.50	0.05	0.25	C1125
500-00851	VBMT160408-TM C3115	0.8	16.5	9.52	4.76	4.4	0.4	2.50	0.05	0.25	C3115
500-00800	VBMT160408-TM P2125	0.8	16.5	9.52	4.76	4.4	0.4	2.50	0.05	0.25	P2125
500-00801	VBMT160408-TM P2225	0.8	16.5	9.52	4.76	4.4	0.4	2.50	0.05	0.25	P2225
500-00852	VBMT160408-TM P2825	0.8	16.5	9.52	4.76	4.4	0.4	2.50	0.05	0.25	P2824
