CCMT-TF

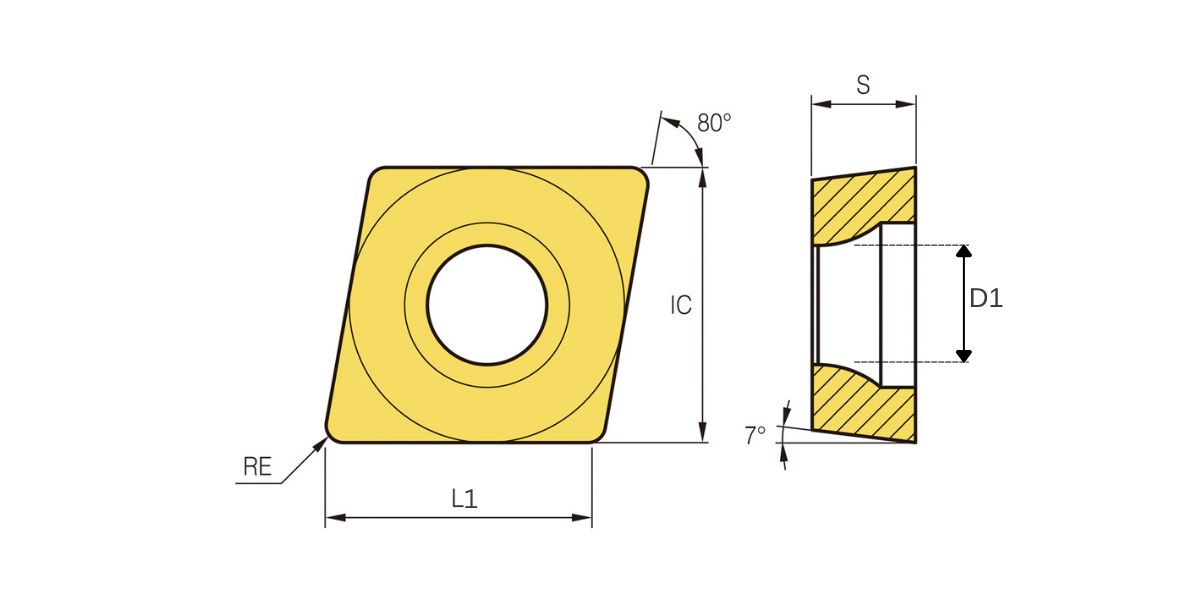

80° Rhombic Positive Flank Inserts for Finishing of steel and stainless steel .


Item Number	Designation	RE (mm)	L1 (mm)	IC (mm)	S (mm)	D1 (mm)	Min. ap (mm)	Max. ap (mm)	Min. ft (mm/rev)	Max. ft (mm/rev)	Q
500-00933	CCMT060204-TF C1115	0.4	6.4	6.35	2.38	2.8	0.20	1.50	0.05	0.25	C1115
500-00934	CCMT060204-TF C1125	0.4	6.4	6.35	2.38	2.8	0.20	1.50	0.05	0.25	C1125
500-00732	CCMT060204-TF P2125	0.4	6.4	6.35	2.38	2.8	0.20	1.50	0.05	0.25	P2125
500-00935	CCMT060204-TF P2225	0.4	6.4	6.35	2.38	2.8	0.20	1.50	0.05	0.25	P2225
500-00936	CCMT060208-TF C1115	0.8	6.4	6.35	2.38	2.8	0.40	1.50	0.05	0.25	C1115
500-00937	CCMT060208-TF C1125	0.8	6.4	6.35	2.38	2.8	0.40	1.50	0.05	0.25	C1125
500-00938	CCMT060208-TF P2125	0.8	6.4	6.35	2.38	2.8	0.40	1.50	0.05	0.25	P2125
500-00939	CCMT060208-TF P2225	0.8	6.4	6.35	2.38	2.8	0.40	1.50	0.05	0.25	P2225
500-00940	CCMT09T304-TF C1115	0.4	9.7	9.52	3.97	4.4	0.20	1.50	0.05	0.25	C1115
500-00941	CCMT09T304-TF C1125	0.4	9.7	9.52	3.97	4.4	0.20	1.50	0.05	0.25	C1125
500-00942	CCMT09T304-TF P2125	0.4	9.7	9.52	3.97	4.4	0.20	1.50	0.05	0.25	P2125
500-00943	CCMT09T304-TF P2225	0.4	9.7	9.52	3.97	4.4	0.20	1.50	0.05	0.25	P2225
500-00738	CCMT09T308-TF C1115	0.8	9.7	9.52	3.97	4.4	0.40	1.50	0.05	0.25	C1115
500-00944	CCMT09T308-TF C1125	0.8	9.7	9.52	3.97	4.4	0.40	1.50	0.05	0.25	C1125
500-00739	CCMT09T308-TF P2125	0.8	9.7	9.52	3.97	4.4	0.40	1.50	0.05	0.25	P2125
500-00945	CCMT09T308-TF P2225	0.8	9.7	9.52	3.97	4.4	0.40	1.50	0.05	0.25	P2225
