CNMG-GR
Double-Sided 80° Rhombic Inserts for Roughing. Suitable for machining of steel.

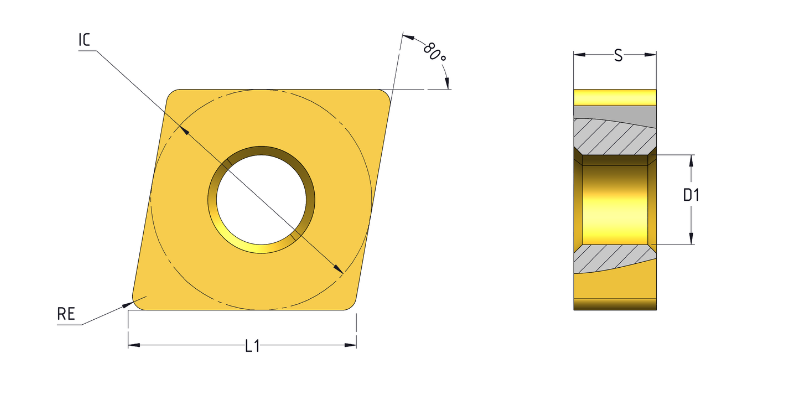

Technical Diagram
Product Details
|
Item Number
|
Designation
|
RE (mm)
Corner radius
|
L1 (mm)
Insert edge length
|
IC (mm)
Insert size
|
S (mm)
Insert thickness
|
D1 (mm)
Hole diameter
|
Min. ap (mm)
Minimum depth of cut
|
Max. ap (mm)
maximum depth of cut
|
Min. ft (mm/rev)
Minimum feedrate
|
Max. ft (mm/rev)
Maximum feed rate
|
Q
Grade
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-00707 | CNMG120408-GR C1115 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 2.0 | 6.5 | 0.25 | 0.60 | C1115 |
| 500-00708 | CNMG120408-GR C1125 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 2.0 | 6.5 | 0.25 | 0.60 | C1125 |
| 500-00709 | CNMG120408-GR C1135 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 2.0 | 6.5 | 0.25 | 0.60 | C1135 |
| 500-00710 | CNMG120412-GR C1115 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 2.0 | 6.5 | 0.25 | 0.60 | C1115 |
| 500-00754 | CNMG120412-GR C1125 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 2.0 | 6.5 | 0.25 | 0.60 | C1125 |
| 500-00711 | CNMG120412-GR C1135 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 2.0 | 6.5 | 0.25 | 0.60 | C1135 |
Showing 1 to 6 of 6 results
