CNMG
Double-Sided 80° Rhombic Inserts for General Machining. Suitable for machining of Cast Iron.

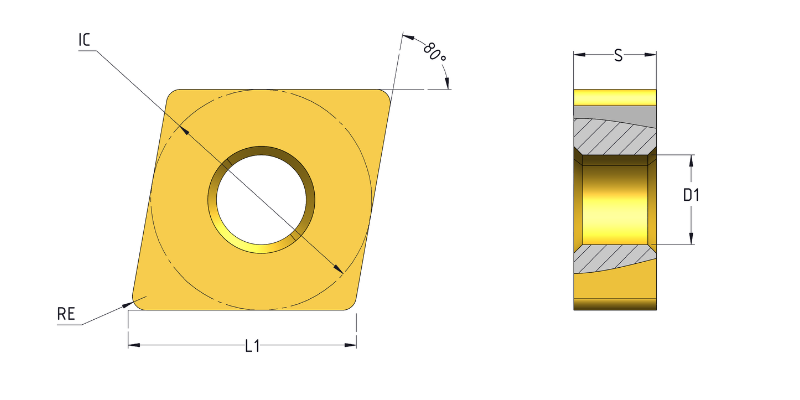

Technical Diagram
Product Details
|
Item Number
|
Designation
|
RE (mm)
Corner radius
|
L1 (mm)
Insert edge length
|
IC (mm)
Insert size
|
S (mm)
Insert thickness
|
D1 (mm)
Hole diameter
|
Min. ap (mm)
Minimum depth of cut
|
Max. ap (mm)
maximum depth of cut
|
Min. ft (mm/rev)
Minimum feedrate
|
Max. ft (mm/rev)
Maximum feed rate
|
Q
Grade
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500-00823 | CNMG120404 C3115 | 0.4 | 12.9 | 12.7 | 5.16 | 5.16 | 1.0 | 4.5 | 0.15 | 0.55 | C3115 |
| 500-00824 | CNMG120408 C3115 | 0.8 | 12.9 | 12.7 | 5.16 | 5.16 | 1.0 | 4.5 | 0.15 | 0.55 | C3115 |
| 500-00825 | CNMG120412 C3115 | 1.2 | 12.9 | 12.7 | 5.16 | 5.16 | 1.0 | 4.5 | 0.15 | 0.55 | C3115 |
| 500-00826 | CNMG120416 C3115 | 1.6 | 12.9 | 12.7 | 5.16 | 5.16 | 1.0 | 4.5 | 0.15 | 0.55 | C3115 |
| 500-00827 | CNMG160608 C3115 | 0.8 | 16.1 | 15.87 | 6.35 | 6.35 | 1.0 | 4.5 | 0.15 | 0.55 | C3115 |
| 500-00828 | CNMG160612 C3115 | 1.2 | 16.1 | 15.87 | 6.35 | 6.35 | 1.0 | 4.5 | 0.15 | 0.55 | C3115 |
| 500-00829 | CNMG160616 C3115 | 1.6 | 16.1 | 15.87 | 6.35 | 6.35 | 1.0 | 4.5 | 0.15 | 0.55 | C3115 |
| 500-00830 | CNMG190612 C3115 | 1.2 | 19.3 | 19.05 | 6.35 | 7.94 | 2.0 | 6.5 | 0.40 | 0.80 | C3115 |
| 500-00831 | CNMG190616 C3115 | 1.6 | 19.3 | 19.05 | 6.35 | 7.94 | 2.0 | 6.5 | 0.40 | 0.80 | C3115 |
Designation
CNMG120404 C3115
Designation
CNMG120408 C3115
Designation
CNMG120412 C3115
Designation
CNMG120416 C3115
Designation
CNMG160608 C3115
Designation
CNMG160612 C3115
Designation
CNMG160616 C3115
Designation
CNMG190612 C3115
Designation
CNMG190616 C3115
Showing 1 to 9 of 9 results
